YIMU CM100 Fully-Auto Capping Machine: High-Speed Precision Capping Solution
  • YIMU CM100 Fully-Auto Capping Machine: High-Speed Precision Capping Solution

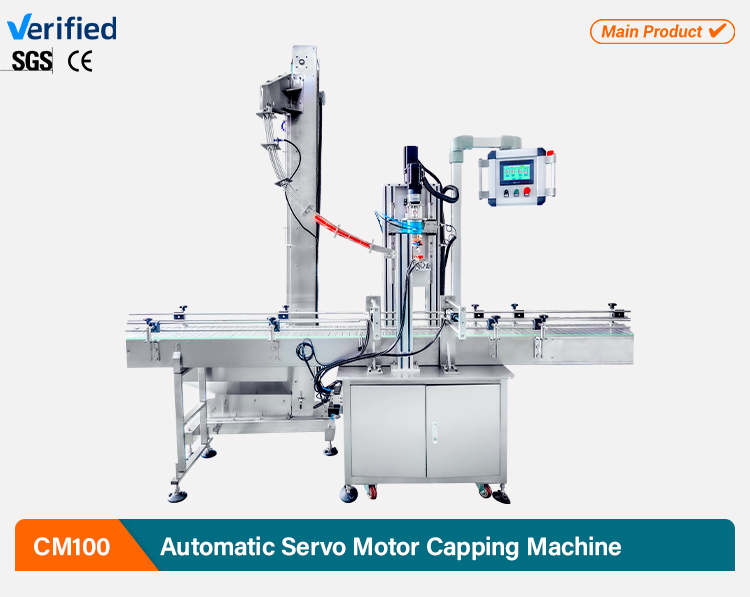

YIMU CM100 Fully-Auto Capping Machine: High-Speed Precision Capping Solution

YIMU CM100 Fully-Auto Capping Machine: High-Speed Precision Capping Solution

Plaats van herkomst Shanghai
Merknaam YIMU PACK
Certificering CE
Modelnummer CM100
Productgegevens
Markeren:

fully-auto capping machine with warranty

,

high-speed precision capping solution

,

automatic labeling machine for bottles

Betaling en verzendvoorwaarden
Min. bestelaantal
1
Verpakking Details
Houten behuizing
Levertijd
20
Betalingscondities
D/a, d/p, t/t
Productbeschrijving
YIMU CM100 Fully-Auto Capping Machine: High-Speed Precision Capping Solution
1. Product Overview

The YIMU CM100 is an integrated fully-automatic capping system engineered for high-efficiency bottle sealing across diverse manufacturing sectors. Featuring advanced vibratory cap feeding technology, precise torque control, and intelligent PLC programming, it streamlines the capping process from cap sorting to final sealing—delivering consistent quality, reducing labor dependency, and adapting seamlessly to multi-SKU production lines.

1.1 Core Value Proposition
Key Advantage Business Impact
Vibratory feeding + fully-auto capping Replaces 5–7 manual workers; cuts labor costs by 70%+ annually
±0.3 N·m torque precision Eliminates leakage risks; maintains product integrity (critical for liquids/powders)
60–140 bottles/min high speed Meets large-scale production demands (up to 201,600 bottles/day at max speed)
Wide compatibility + quick adjustment Adapts to 90%+ common cap/bottle combinations; reduces changeover time to <10 minutes
2-year warranty + global technical support Lowers maintenance costs; ensures 24/7 production continuity
1.2 Basic Specifications
Category Details
Product Name YIMU CM100 Fully-Auto Capping Machine with Automatic Vibratory Cap Feeder
Brand/Model YIMU / CM100
Origin Shanghai, China
Power Configuration Electric (110V/220V/380V customizable; 50/60Hz)
Automation Level Fully automatic (cap sorting → feeding → capping → inspection)
Construction Material SS304 stainless steel (corrosion-resistant, GMP/FDA-compliant)
Dimensions & Weight 1900×750×1650 mm; 350 kg (net weight)
Certifications CE, ISO 9001
Core Components Mitsubishi/SIEMENS PLC, Servo Motor, High-Sensitivity Torque Sensor, Vibratory Cap Feeder
2. Technical Parameters & Performance
2.1 Key Operational Metrics
Parameter Specification Practical Significance
Capping Speed 60–140 bottles/min (adjustable) Fits medium-batch (60 bottles/min) to large-scale mass production (140 bottles/min)
Torque Control Precision ±0.3 N·m Prevents over-tightening (cap/bottle damage) and under-tightening (leakage); ideal for fragile containers
Power Consumption 1.3 kW Energy-saving design; supports continuous 24/7 operation with low utility costs
Cap Feeding Efficiency 99.9% stable feeding rate No cap jams or misfeeds via vibratory bowl sorting technology
2.2 Cap & Bottle Compatibility
Type Range Application Examples
Caps Diameter: 15–55 mm
Types: Screw caps, flip-top caps, twist-off caps (plastic/light metal)		 500ml beverage screw caps (38mm), cosmetic pump caps (28mm), pharmaceutical twist-off caps (32mm)
Bottles Diameter: 20–95 mm
Height: 80–340 mm
Materials: Plastic, glass
Shapes: Round, square, oval		 1L glass sauce bottles (75mm diameter), 200ml plastic skincare bottles (45mm diameter), 350ml square juice bottles (55mm diameter)
2.3 Conveyor & Control System
Component Features
Conveyor Speed: 0–19 m/min (synchronized with capping speed)
Width: 90–280 mm (adjustable for multi-size bottles)
Material: Anti-slip rubber belt (prevents bottle displacement during capping)
Control System PLC + color touch screen
Multi-language support (English, German, French, Spanish, etc.)
50+ product recipe storage (one-click switch between different cap/bottle specifications)
3. Core Features & Technical Advantages
  • Equipped with vibratory bowl cap feeder for automatic sorting, orientation, and feeding—eliminates manual cap placement and reduces human error by 98%.
  • Seamless integration of feeding and capping processes ensures continuous operation, no production bottlenecks even at max speed.
  • High-sensitivity torque sensor with ±0.3 N·m precision provides real-time torque monitoring and adjustment.
  • Critical for liquid products (e.g., beverages, pharmaceuticals) and high-value items, where leakage can lead to product waste and brand damage.
  • Adapts to diverse bottle shapes (square/oval) and materials (fragile glass to rigid plastic) without changing core components.
  • Tool-free adjustment for cap/bottle size changes: reduces downtime between production runs to <10 minutes, boosting overall line efficiency.
  • SS304 stainless steel frame resists corrosion from cleaning agents and harsh production environments.
  • Smooth, crevice-free surfaces comply with GMP (Good Manufacturing Practices) and FDA standards, easy to sanitize for food/pharmaceutical applications.
  • Intuitive touch screen interface allows operators to set parameters (speed, torque) and recall stored recipes without technical training.
  • Built-in fault self-diagnosis system alerts for cap shortage, bottle jams, or torque deviations—reduces troubleshooting time by 70% vs. conventional machines.
4. Industry Applications

Trusted by manufacturers worldwide, the CM100 excels in high-demand sectors:

Industry Use Case Customer Feedback
Food & Beverage 38mm screw caps for 1L fruit juice bottles (120 bottles/min) "Increased our production capacity by 3x while cutting labor costs by $80k/year." — Leading beverage brand
Pharmaceuticals Twist-off caps for 100ml syrup bottles (80 bottles/min) "Torque precision ensures no leakage; fully compliant with our GMP requirements." — Pharmaceutical manufacturer
Cosmetics Flip-top caps for 50ml facial cleanser bottles (100 bottles/min) "Quick recipe storage lets us produce 8+ SKUs on one line—saved us from buying multiple machines." — Cosmetic OEM
Daily Chemicals Screw caps for 500ml laundry detergent bottles (90 bottles/min) "Stable operation for 12 hours/day; minimal maintenance needed." — Household chemical producer
5. Packaging, Delivery & Customization
5.1 Packaging & Shipping
Detail Specification
Packaging Material Export-standard wooden crate (shock-proof, moisture-proof, fumigation-free for global shipping)
Package Size 200×85×175 cm (with EPE foam buffer inside)
Gross Weight 420 kg
Lead Time 1–3 sets: 20 working days
>3 sets: Negotiable (priority production for bulk orders)
5.2 Customization Services
Service Type Details Minimum Order Quantity (MOQ)
Logo Customization Brand logo printing/engraving on machine body or control panel 1 set
Packaging Customization Tailored wooden cases with brand marks, handling instructions, or customer-specific labels 1 set
Functional Customization Adjust capping head, torque range, or feeder size for special caps/bottles (e.g., extra-large diameter caps, irregular-shaped bottles) Negotiable
6. About YIMU Machinery

Shanghai Yimu Machinery Co., Ltd. is a verified custom manufacturer of packaging automation equipment since 2016, focusing on R&D, production, and after-sales service:

Strength Details
Production Capacity 888㎡ professional factory with 3 dedicated assembly lines; 72-hour continuous operation testing for every machine before delivery
Quality Control System 3-stage inspection: Raw material qualification → semi-finished product performance test → final factory acceptance test (FAT)
Global Presence Exported to 60+ countries (U.S., EU, Australia, Southeast Asia); 94.4% customer satisfaction rate based on post-sales feedback
Value-Added Services Free pre-sales consultation (production line layout, capacity matching); overseas on-site installation and training for bulk orders

Ready to optimize your capping process? Contact our team for a personalized quote, video demo, or customized solution tailored to your production needs.
